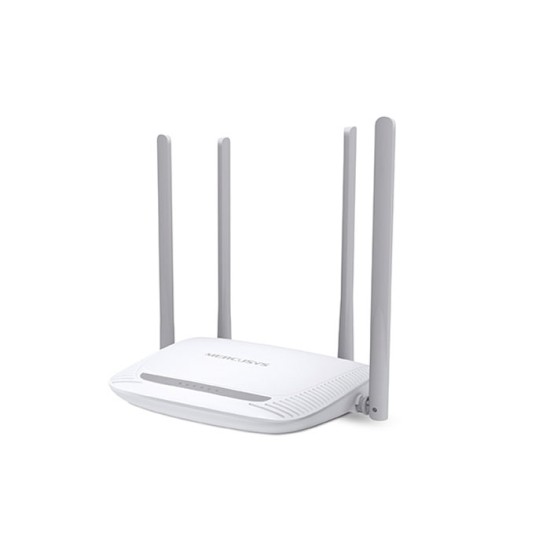

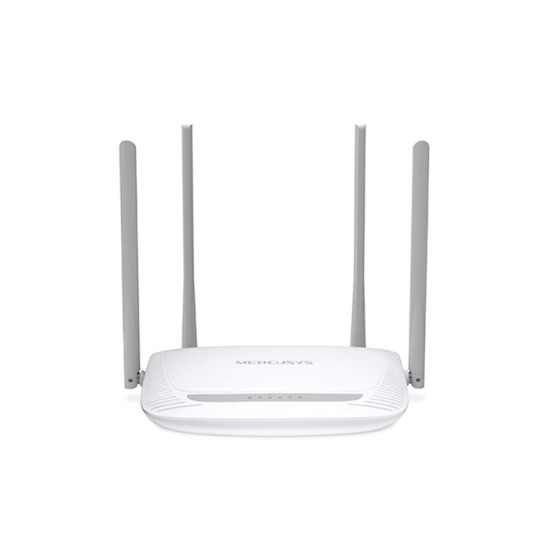

300Mbps Enhanced Wireless N Router

MW325R

Maximum coverage – four 5dBi antennas provide up to 500m²of wireless coverage
Enhanced signal – high gain antennas dramatically increase wireless signal strength, size and stability
300Mbps wireless speed - ideal for HD streaming, online gaming, and large file downloads
Easy installation - intuitive webpage guides you through the setup process in minutes
*Range specications are based on performance test results. Real performance varies in accordance with applications and environmental conditions.

Overview

Maximize your Wi-Fi Coverage

300Mbps Enhanced Wireless N Router

MW325R

Up to 500 m² of Wi-Fi Coverage

The MW325R creates an expansive wireless network that is capable of covering your home with up to 500m2 of wireless coverage. You can enjoy reliable, high performance connections in the living room, the bedroom, or even the backyard.

* Range specifications are based on performance test results. Real performance varies in accordance with application and environmental conditions.

Four 5dBi Antennas

By combining 2x2 MIMO Technology and four high gain antennas, the MW325R is able to significantly increase its signal transmission and reception capabilities. This means that you do not have to worry about lag or dropped connections while enjoying online gaming and streaming video.

Three-Step Installation

With no need for complicated configuration, you can simply follow the step-by-step
instructions on the intuitive webpage to set up your MW325R in minutes.

1 / Create a unique login password
2 / Choose your Internet service and fill in the required information
3 / Set your wireless network name (SSID) and password

Network Security

Comprehensive security features help your devices form safe connections to the MW325R.

Specifications

Dimensions (W X D X H)	167 x 118 x 33 mm
Interfaces	4 10/100Mbps LAN ports 1 10/100Mbps WAN port
Button	Reset button
External Power Supply	9VDC/0.6A
Antenna Type	4 x 5dBi fixed omni directional antennas
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4 - 2.4835GHz
Signal Rate	11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic)
Reception Sensitivity	270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -74dBm@10% PER 54M: -77dBm@10% PER 11M: -87dBm@8% PER 6M: -90dBm@10% PER 1M: -98dBm@8% PER
Certifications	CE, ROHS
Package Contents	300Mbps Enhanced Wireless N Router MW325R Power adapter Quick installation guide Ethernet cable
Environment	Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F) Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F) Operating humidity: 10% ~ 90%, non-condensing Storage humidity: 5% ~ 90%, non-condensing
Transmission Power	<20dBm
Wireless Security	WPA-PSK / WPA2-PSK
Wireless Functions	WDS bridge
WAN Type	Dynamic IP/Static IP/PPPoE
Management	Access control Local management Remote management
DHCP	Server
Port Forwarding	Virtual server, UPnP, DMZ
Dynamic DNS	Oray
Firewall Security	IP and MAC address binding
Protocols	IPv4
Guest Network	2.4GHz guest network
