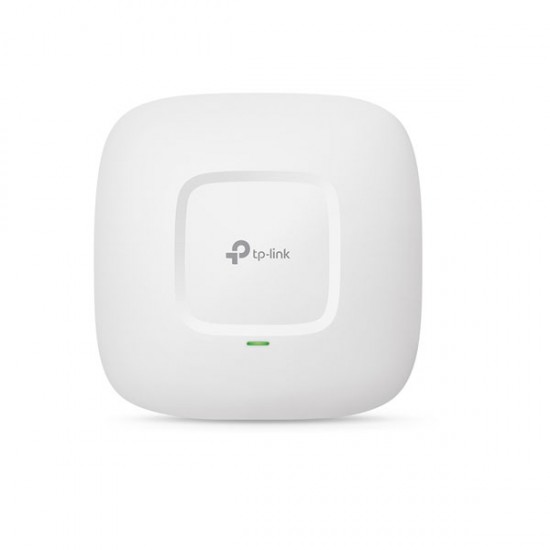

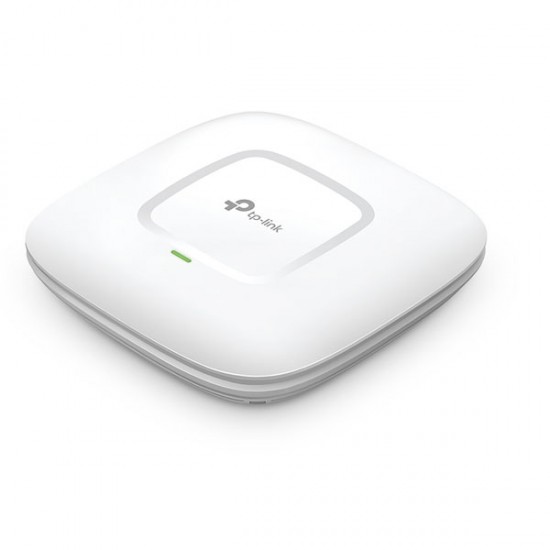

300Mbps Wireless N Ceiling Mount Access Point

EAP115

Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software
Supports Power over Ethernet (802.3af) for convenient and affordable installation
Simple mounting design for easy attachment to a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Enterprise class Wi-Fi security help to decrease network security threats
Multi-SSID divides multiple wireless networks for different user types

EAP Controller Software enables administrators to easily manage hundreds of EAPs
Cluster management makes it easy to manage a small network by allowing up to 24 Auranet EAP115 units to act as a single cluster
Supports IEEE 802.3af PoE for convenient and affordable installation
Simple mounting design for easy attachment to a wall or ceiling
300Mbps wireless data rate for uninterrupted wireless connection
Captive portal provides one convenient method of authentication for Wi-Fi guests
Rate limit per SSID to restrict the bandwidth of each client
Access Control restricts sets limitations for client access to the specified network segment
Reboot Schedule enables all APs to automatically reboot within a specified time
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN network
Multi-SSID divides multiple wireless network for different user types
Load balance ensures large business networks with smooth a network experience
Compatible with 802.11 b/g/n products
QoS function prioritizes data, voice, and video to ensure time-sensitive applications take priority over all other traffic
Durable housing prevents dust from dropping onto the PCB through bypass louver to provide long-term, unhindered operation
Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance

HARDWARE FEATURES

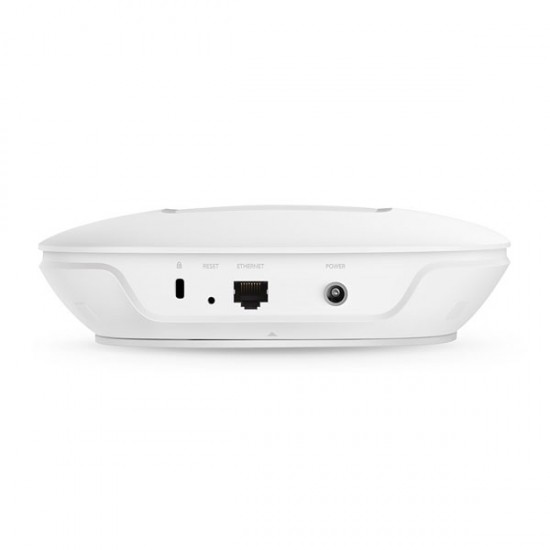

Interface	Fast Ethernet (RJ-45) Port *1（Support IEEE802.3af PoE）
Button	Reset
Power Supply	PoE or external 12VDC/1.0A power supply
Power Consumption	5W
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )	7.1 x 7.1 x 1.9 in. (18018047.5mm)
Antenna Type	Internal 2* 3dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)
Physical Security Lock	Kensington Lock Slot
Watch Dog	Yes

WIRELESS FEATURES
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wireless Functions	Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	CE: <20dBm FCC: <26dBm

MANAGEMENT
Auranet Controller Software	Yes
Cluster Mode	Yes
EAP Controller Software
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet	Yes
Web-based Management	HTTP/HTTPS
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N Ceiling Mount Access Point EAP115 Power Adapter Mounting Kits, Installation Guide
System Requirements	Microsoft Windows 10/8/7/Vista/XP
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
